PS15
| Applications | Feature |
Bar KTV Near-Field Sound | Elastic bass Long throw rubber edge LF driver Rotatable 80 x 50°directivity horn With PCT(Phase Coherent Technology) technology |
| Technical parameters | ||

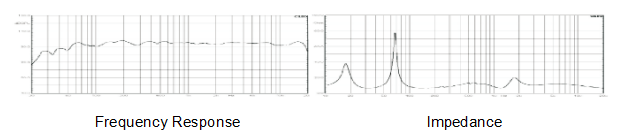

| Frequency response | 50Hz~ 18 kHz(土3 dB);30 Hz ~ 20 kHz(- 10 dB) | |
| Nominal directivity(-6dB) | 80°(H) ×50°（V） Constant directivity | |
| Sensitivity (@1w/1m) | 97 dB SPL | |
| Power Rating | 500W | |
| Impedance | 8 ohm | |
| Maximum SPL | 123dB/133dB SPL peak | |
| Transducers | LF:1x15" All Condition Woofer HF:1x3"Phase Correction HF compression driver | |
| Power lnput | |
| Connectors | NEUTRIK NL4MP*2 |
| Speaker Cables | 1+1- |
| Appearance | ||

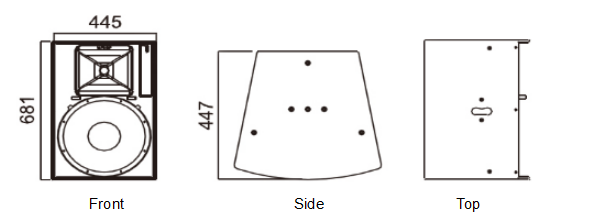

| Dimensions | 445x447x681mm | |
| Weight | 26Kg | |
| Materials | Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings | |
| Finish | Black Polyurea paintings | |
| Cover | Black epoxy mesh grille with acoustically reticulated cloth | |
Grille | DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic. | |
-
