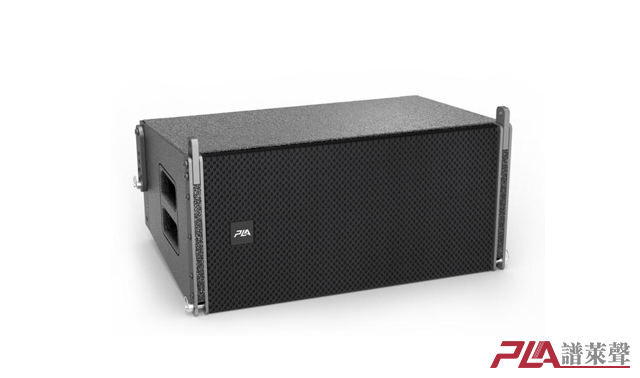

LS110

Applications	Feature
Touring performance	Extremely compact , Small enclosure, light weight;Configuration of WPE wavepath equidistant ac
Theatre	All neodymium high sensitivity unit,great dynamic margins
Church	Touring performance、Theatre、Multipurpose hall、Church
Multipurpose hall	With WCT (Wavefront Coupling Technology)

Technical parameters

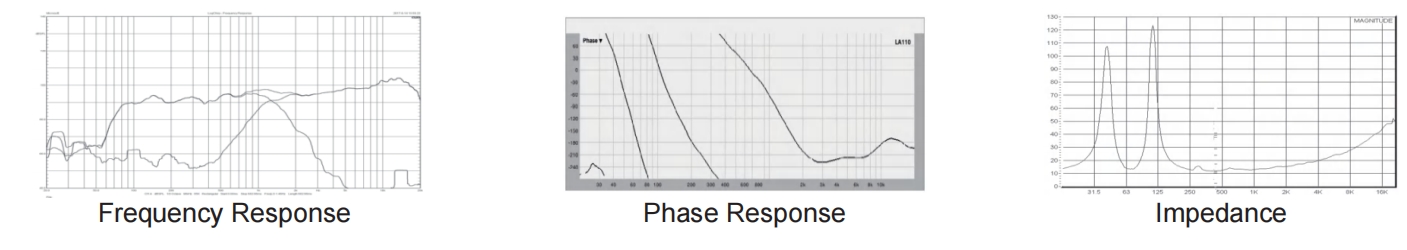

Frequency response	60 Hz-18 kHz(+3 dB) 50 Hz-20 kHz(-10 dB)
Nominal directivity(-6dB)	100°(H) 10°(V) adjustable
Sensitivity (@1w/1m)	HF/LF:112dB/103dB SPL
Power Rating	HF/LF:80W/350W
Impedance	HF/LF:16/16 ohm
Maximum SPL	HF:131/141dB SPL peak LF:128/138dB SPL peak
Transducers	LF:1x10" All Condition Woofer HF:1x3" Phase Correction compression driver

Physical data

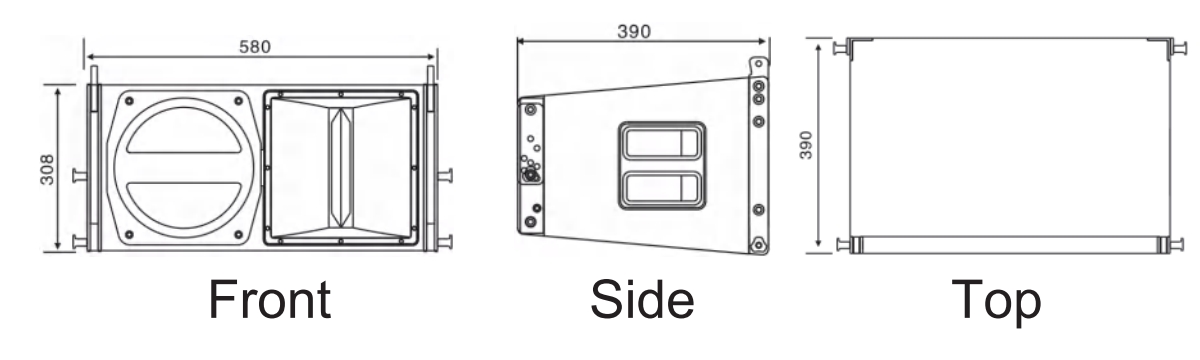

Dimensions	580x390x308mm
Weight	22.5Kg
Connectors	WP42,NEUTRIK NL4MP2
Speaker Cables	WP4:1-2+...LF,3-4+...HF NL4:1+1-...LF,2+2-...HF
Material	Imported multi-plywood Environmental waterproof and anti corrosion coatings
Finsh	Black Polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated cloth
mesh	DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
Rigging	0、1、2、3、4、5、7.5、10°Adjustable
