還記得廣州展會上，那股DI200Pro 風潮嗎？

DI200 Pro

DI200Pro 在 廣州展閃耀亮相，廣受同行業界朋友一致好評，引起外籍友人的關注。




下面為您中英講解 DI200Pro的秘密

 產品描述  Productdescription

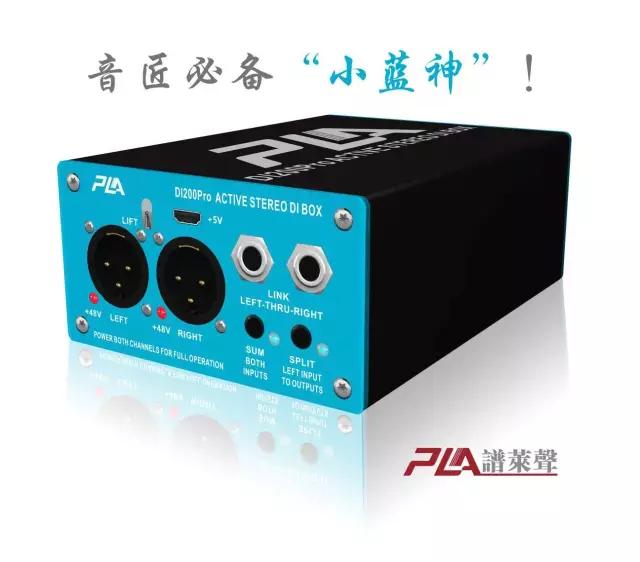

    DI200Pro DI盒，選用英國進口坡莫合金VIGORTRONIX音頻隔離變壓器，原裝進口瑞士NEUTRIK接插件，沉金電路設計，使信號完美對接。雙路6.35、RCA和卡儂座進出，輸入采用電子平衡式Neutrik Combo系列卡儂和6.35兩用插座。平衡和非平衡可以互相轉換和分配，設有共地和不共地開關。DI盒廣泛應用于：廣電傳媒傳輸系統，音視系統工程，現場音響擴聲。

DI200Pro is active stereodistribution box, a part of accessories are imported from UK permalloy VIGORTRONIXaudio isolation transformer and Switzerland NEUTRIK connector, turmeric circuitdesign makes signal much perfect. Duplex line 6.35、RCA and XLR plug for input & output, its input is used inelectronic balanced NEUTRIK Combo series XLR and 6.35 connectors. You cantransform and distribute balanced & unbalanced or set up common ground oruncommon ground switch. DI box has application in radio and televisiontransmission system, audio and video system engineering & soundreinforcement, etc.

電聲樂器（如：電吉他、電貝司、電鋼琴、鍵盤、電子鼓、效果器以及一些專用的樂器話筒等）的音頻信號經過DI200Pro音頻信號隔離器，平衡和非平衡可以相互轉換，可以完全隔離兩個系統間的電位差，避免由于接地問題造成的交流聲干擾，防止過高電位差對設備輸入級的損壞。實現音頻信號的安全傳輸，去除視頻系統和音響系統連接產生的噪音；同聲傳譯設備與調音臺連接所產生的噪音；筆記本電腦接調音臺產生的噪音；電子樂器連接調音臺產生的噪音；設備和設備間經過長距離傳輸不共地產生的噪聲；設備與設備阻抗不匹配產生的噪聲。解決由于場地用電，走線，燈光干擾等原因而引起的交流聲。還適用于大型戶外演出，防雷，音響工程，會議，娛樂場所，展覽等一系列音響設備系統，是音頻系統級聯的必備設備。

Electro-acoustic music (Suchas, electric guitar, electric bass, electric piano, keyboards, electronicdrums, effects pedal some special instrument mic and so on), Audio signalcrosses DI box high performance impedance adapter, balanced and unbalanced canbe changed each other, it can absolutely isolate potential difference betweentwo systems, avoiding hum interference when connects ground wire and guardagainst high potential difference breaking equipment input stage. Realizingaudio signal’s secure transmission, and it can remove several noise underconnection, include video system and audio system; facilities for simultaneousinterpretation and mixer; Laptop connects mixer; electric musical instrumentconnects sound console; long distance uncommon ground between equipment;impedance unmatched between equipment. However, DI box also solves other huminterference due to the use of electricity, running cable or interference oflights. Meanwhile, DI200Pro applies to large-scale outdoor show, lightningprotection, audio system, conference room and so on.


產品規格  Product Specifications

★型號：DI200Pro
★高性能阻抗匹配器
★通道：2（左、右聲道）
★輸入：1、非平衡式立體聲輸入RCA接口，帶20KΩ輸入阻抗；
2、原裝進口瑞士NEUTRIK1/4"立體聲插口，金屬軸端，帶高效底座接地，T+R+S標準觸點；
3、組合式電子平衡NeutrikCombol系列 XLR 3芯插座，同時包含?"立體聲插座。
★輸出：雙通道原裝進口瑞士NEUTRIK 3芯公頭XLR插座。
★雙通道+48V幻象電源。
★衰減器：0、-20 dB開關切換。
★ LIFT接地開關。
★+5V USB 接口供電。
★MUTE 靜電開關。
★輸入信號電平指示 LED 燈。
★頻率響應：20Hz-20KHz。
★凈重：0.8Kg。
★尺寸：長134.6mm*寬98mm*高51.5mm。
★功率消耗：<1W。
★工作溫度范圍：+5o - +45o。
★貯存溫度范圍：-20o - +65o。

★Model：DI200Pro
★High Performance Impedance Adapter
★Channel: 2(Left/Right)
★Input: 1.Unbalanced Stereo Input RCA connector(20KΩimpedance);
2. Original imported Switzerland NEUTRIK 1/4 stereo insert, mental shaft-end, effective lampstand ground connection, T+R+S standard contactor;
3. Combined Balanced NEUTRIK Combo series XLR 3 core connector, including ?" stereo plug.
★Output: Double channel original imported Switzerland NEUTRIK 3 core male XLR connector.
★Double channel +48V phantom current source.
★Attenuator: 0、-20 switch/toggle.
★L(fēng)IFT ground switch
★Powered by +5V USB connect electro static switch on USB.
★MUTE switch
★the input signal level indicator LED lights
★Frequency Response：20Hz- 20KHz.
★Net Weight: 0.8Kg.
★Dimension: 134.5mm (L)x98mm (W)x51.5mm(H).
★Power Consumption：<1W.
★Working Temperature Range：+5o - +45o.
★Storage Temperature Range：-20o - +65o.


注意事項  Notice

在只連接一個通道時，雖然DI200Pro將作為單聲道設備工作，但是，兩個通道都必須通電。以使用立體聲、分離或組合模式。

Whenonly connecting one channel, DI200Pro will be single sound channel, but twochannels must be powered up.  Using  “Stereo” and “Split” or “Sum” mode.


正確操作  Proper Operation

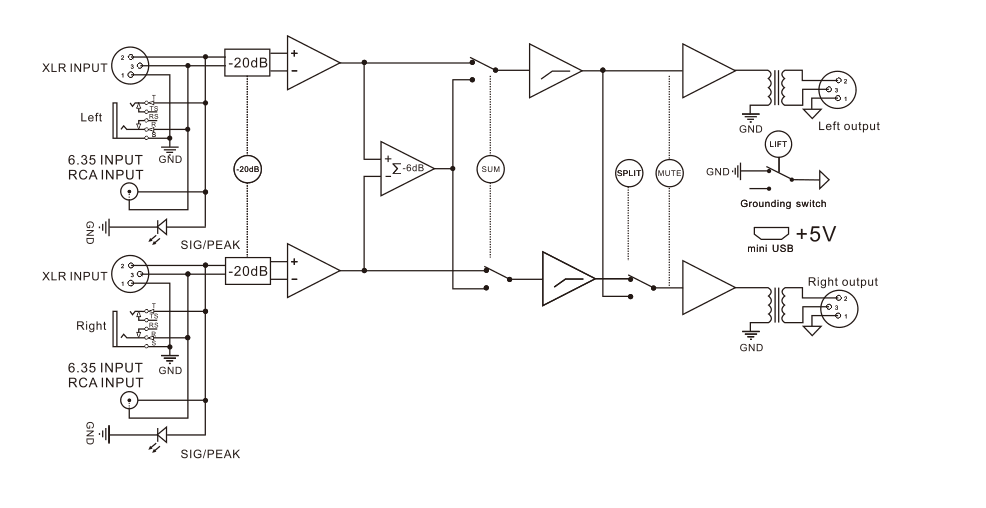

在輸入緩沖級之前 ，從平衡式XLR ,Jack Neutrik Combo A系列連接器或非平衡式RCA連接器提供每個輸入通道的聲源。

     如上所述，“Left（左）”和“Right（右）”輸入可以組合到兩個輸出，“Left（左）”輸入可以分離為“Left（左）”和“Right（右）”輸出，為了全效運行，“Left（左）”和“Right（右）”輸出必須采用幻象電源供電：

     ·在“Sum（組合）”模式，來自左輸出的幻想供電也將提供右通道的電源，但是驅動器的功率降低。為了使DI200Pro在該模式正確運行，左、右輸出應連接并采用幻象電源供電。

     ·在“Split（分離）”模式。通道之間沒有串?dāng)_電源。因此，當只連接一個輸出時，應鏈接到“Left（左）”輸入。當“Left（左）”輸出也采用幻象供電時，“Right（右）”輸出只提供信號。

Beforeinput buffer stage, providing acoustic source for each input channel frombalanced XLR Jack NEUTRIK Combo A series connector orunbalanced RCA connector.
Asmentioned above, “Left” and “Right” input can compose two channels, “Left”input can separate “Left” and “Right” output. To be high-efficiency operation,“Left” and “Right” output must usd phantom electricity to power up.
In “Sum”mode, “Left”output’s phantom electricity will transfer to “Right” channel’s power supply.
In “Split”mode, there’s no crosstalk source. So when connect one input, you’d connect“Left” input. Meantime, using phantom electricity in “Left” output, “Right”output only provides signal.

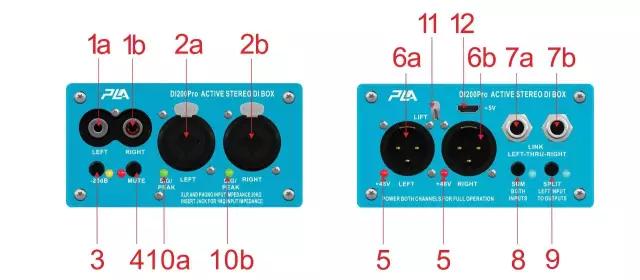

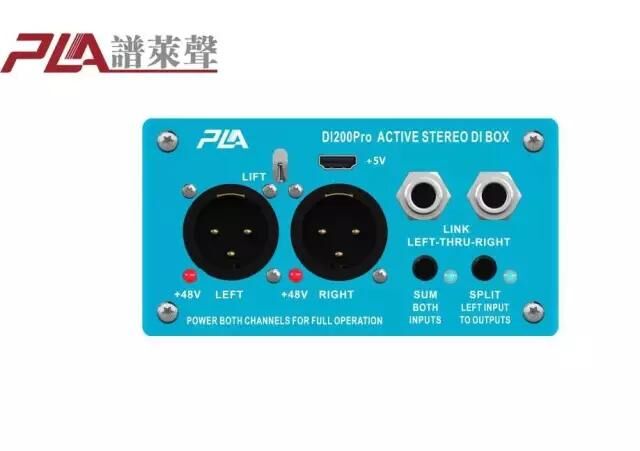

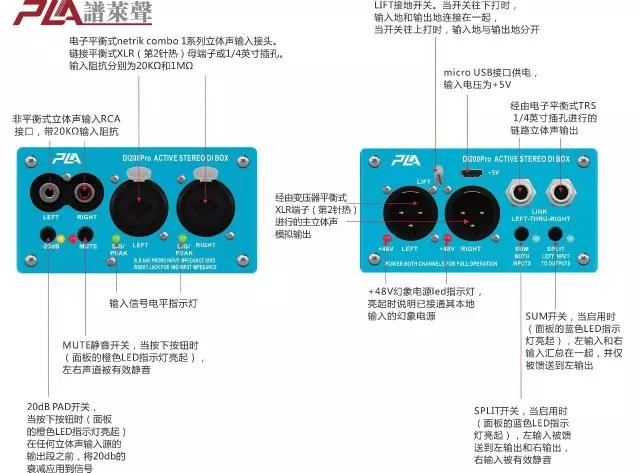

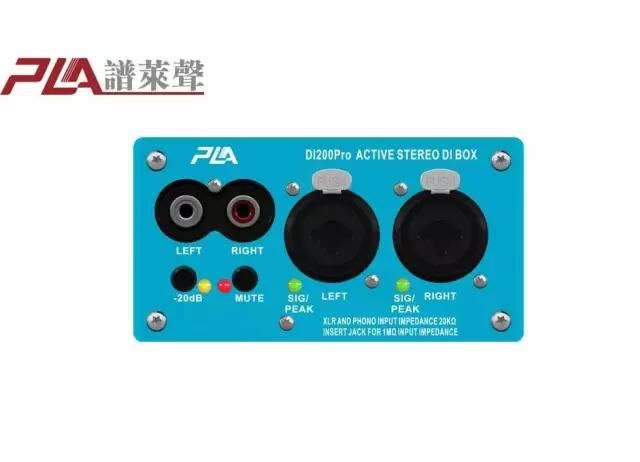

 產品描述  Description(as shownbelow)


1、非平衡式立體聲輸入RCA接口，帶20kΩ輸入阻抗 。
2、電子平衡式 Netrik Combo 1系列立體聲輸入接頭。鏈接平衡式XLR（第2針熱）母端子或1/4英寸插孔 。輸入阻抗分別為20kΩ和lMΩ 。
3、20dB PAD 開關。當按下按鈕時（面板的橙色 LED 指示燈亮起），在任何立體聲輸入源的輸出段之前，將20dB的衰減應用到信號 。
4、MUTE靜音開關 。當按下按鈕時（面板的紅色 LED指示燈亮起 ），左右聲道被有效靜音。
5、＋48V 幻象電源 LED 指示燈，亮起時說明已接通其本地輸入的幻象電源 。
6、經由變壓器平衡式 XLR 端子（第2針熱）進行的主立體聲模擬輸出 。
7、經由電子平衡式TRS 1/4 英寸插孔進行的鏈路立體聲輸出。
8、SPLIT 開關，當啟用時（面板的藍色 LED 指示燈亮起），左輸入被饋送到左輸出和右輸出。右輸入被有效靜音。
9、SUM 開關 ，當啟用時（面板的藍色 LED 指示燈亮起），左輸入和右輸入?yún)R總在一起，并僅被饋送到左輸出。
10、輸入信號電平指示燈。
11、LIFT接地開關 。當開關往下打時，輸入地與輸出地連接在一起，當開關往上打時，輸入地與輸出地分開。
12、micro USB接口供電，輸入電壓為+5V，0.5A。

1. Unbalancedstereo input RCA insert, 20KΩ input impedance.
2. Electricbalanced Neutrik Combo series stereo input insert. Connecting balanced XLR (The 2nd needle heating) female terminal or 1/4inch socket. Input impedance is20kΩ and 1MΩ.
3. 20dB PADswitch. When presses the button (The Orange LED power indicator is on), beforeany stereo input source output, apply 20dB attenuation to signal.
4.The muteswitch . When press the button ( the red LED light is lit up panel ), left andright channels are effective mute .
5.+48V phantompower LED indicator. When power indication is on, it means that switch on localinput phantom power.
6. Main stereoanalog output from transformer balanced XLR terminal (The 2nd needle heating)。
7. Chain circuitstereo output from electric balanced TRS 1/4inch socket.
8. SPLIT switch.When opens （The Blue LED powerindicator is on）, “Left” input will betransformed to “Left” and “Right” output.
9. SUM switch,when opens (The BLUE LED power indicator is on), “Left” and “Right” input willbe combined together and transformed to “Left” output.
10.The inputsignal level indicator .
11. LIFT Grounding switch . When switch to playdown , imports and output together , when switch on the input fields separatedfrom output .
12. Powered bymicro USB connection , the input voltage of +5v .
